iStingor Products

Delay 700DD-1

BBD-Style 700ms Wet/Dry

Product Overview

The DD-1 delivers warm, BBD-style vintage echoes with a 30–700ms range and Wet/Dry outputs.

Core Features

BBD-Style Vintage Delay

Professional audio companding and filtering shape the delay signal into classic analog BBD-style tones, delivering warm, smooth, and natural vintage echoes.

30–700ms Delay Time

The 30ms to 700ms delay range covers short slapback echoes, rhythmic repeats, lead thickening, and wider ambient delay textures.

Wet/Dry Output Routing

OUTPUT A and OUTPUT B support flexible routing, allowing Wet/Dry signal separation for recording, dual-amp setups, and advanced pedalboard configurations.

CMOS Analog Audio Processing

CMOS-based analog audio processing gives the delay repeats a warm, smooth, tube-like tonal character.

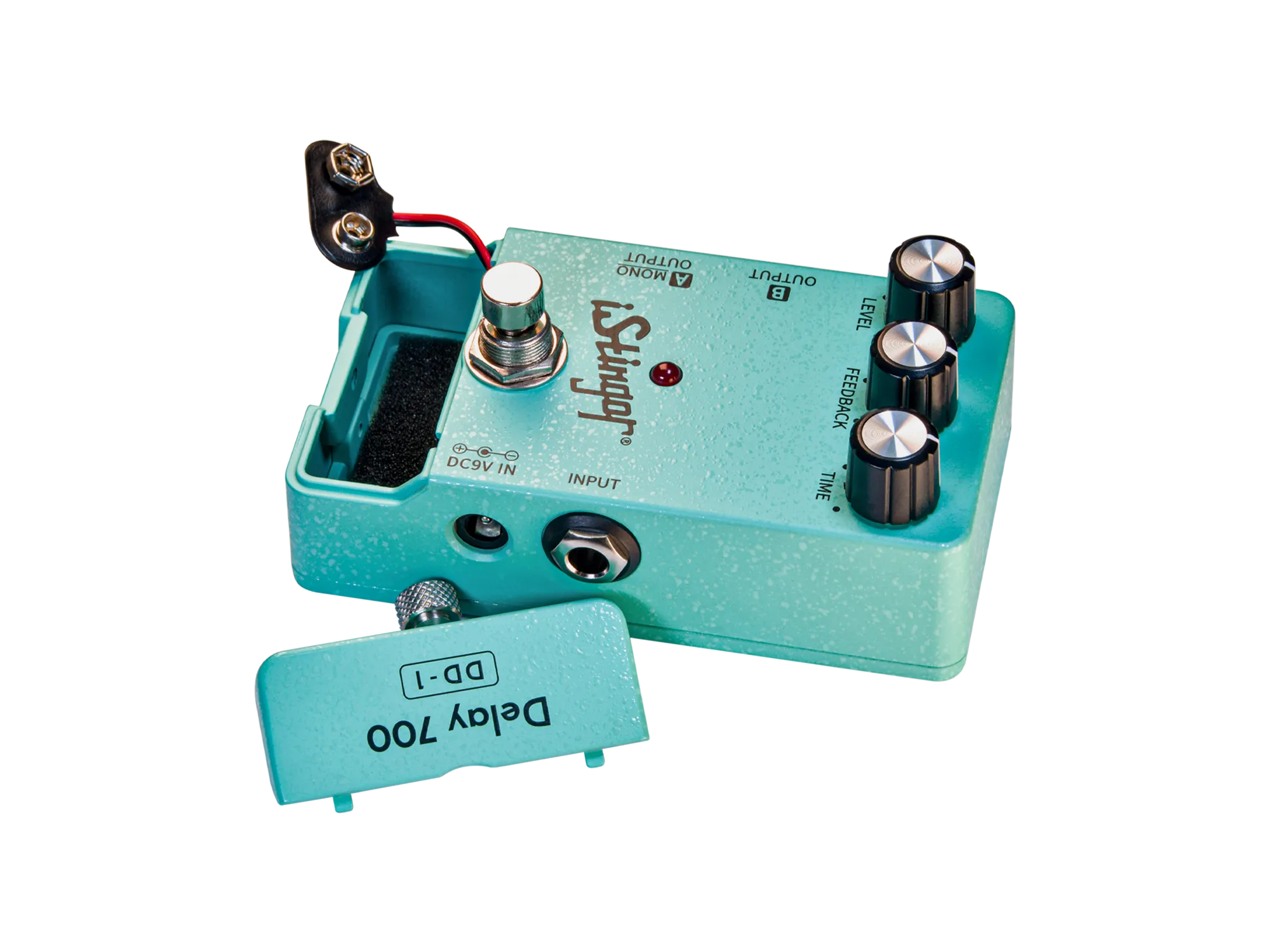

Quick-Swap Battery System

The iStingor quick-swap battery system, combined with standard 9V DC power support, makes the pedal practical for everyday use and pedalboard setups.
BBD-Style Vintage Delay

Warm Echoes with Classic Analog Character

The Delay 700 DD-1 is not just a standard digital delay output. Its professional-grade audio compander and filter system shapes the delay signal to create a warmer response closer to traditional analog BBD delay units. The repeats do not feel cold or harsh; instead, they are smooth, natural, and better blended with the original guitar tone. From subtle ambience and slapback echoes to rhythmic delay and lead thickening, the Delay 700 DD-1 delivers a musical delay response.

Delay 700
Flexible Control & Routing

30–700ms Delay Range with Wet/Dry Output

Delay 700

The Delay 700 DD-1 offers a delay time range from 30ms to 700ms, covering short delay, rhythmic repeats, and spacious echo textures. LEVEL, FEEDBACK, and TIME controls make sound shaping fast and intuitive: LEVEL adjusts the delay effect level, FEEDBACK controls the number of repeats, and TIME sets the delay time. OUTPUT A and OUTPUT B support Wet/Dry routing, with A as Wet and B as Dry, giving players more flexibility for recording, dual-amp setups, and pedalboard routing. With 9V DC power support and a quick-swap battery system, the Delay 700 DD-1 combines musical sound with practical everyday usability.

Delay 700

SPECS

Specifications

Product Name

Delay 700

Model

DD-1

Rated Voltage

9V DC

Nominal Input Level

-20 dBu

Nominal Output Level

-20 dBu

Input Impedance

1 MΩ

Output Impedance

1 kΩ

Load Impedance

≥10 kΩ

Current Draw

40 mA

Power Supply

9V Alkaline (6LR61) or Carbon-zinc (6F22) battery

AC Adaptor Output

9V DC, ≥100 mA (Sold separately)

Dimensions

118 × 67 × 46 mm (L×W×H)

Weight

228 g (without battery)

Accessories

User manual ×1; Warranty Certificate ×1; Non-slip rubber feet ×4; 1/4" (120mm) effects cable ×1; Hook & loop fasteners ×2 sets

INSTRUCTIONS

Product guides and documents

DD-1 User Manual

Official user manual for the iStingor Delay 700 DD-1
