iStingor Products

Metal ShredderMS-1

Metal High-Gain Ultra-Low Noise

Product Overview

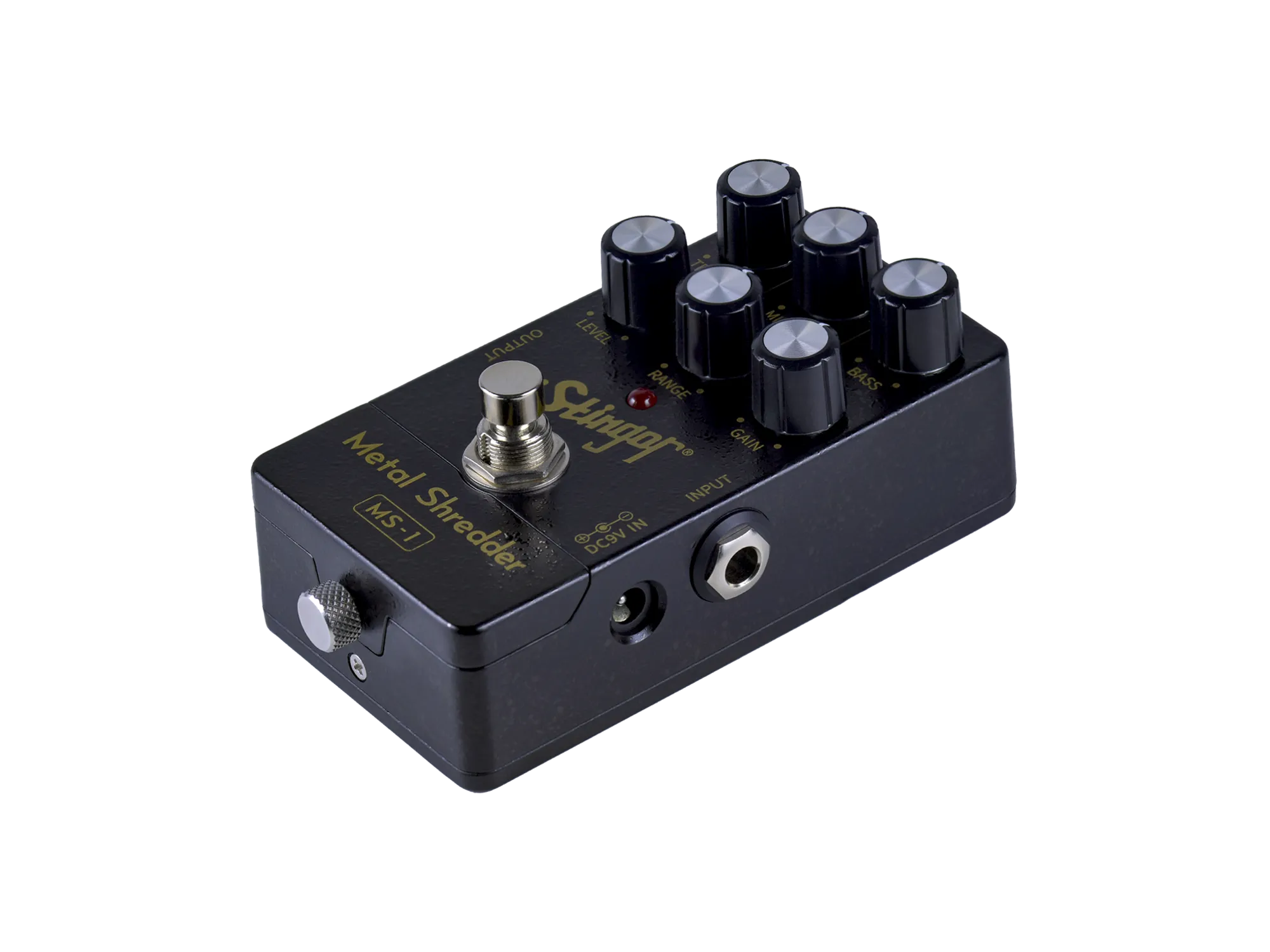

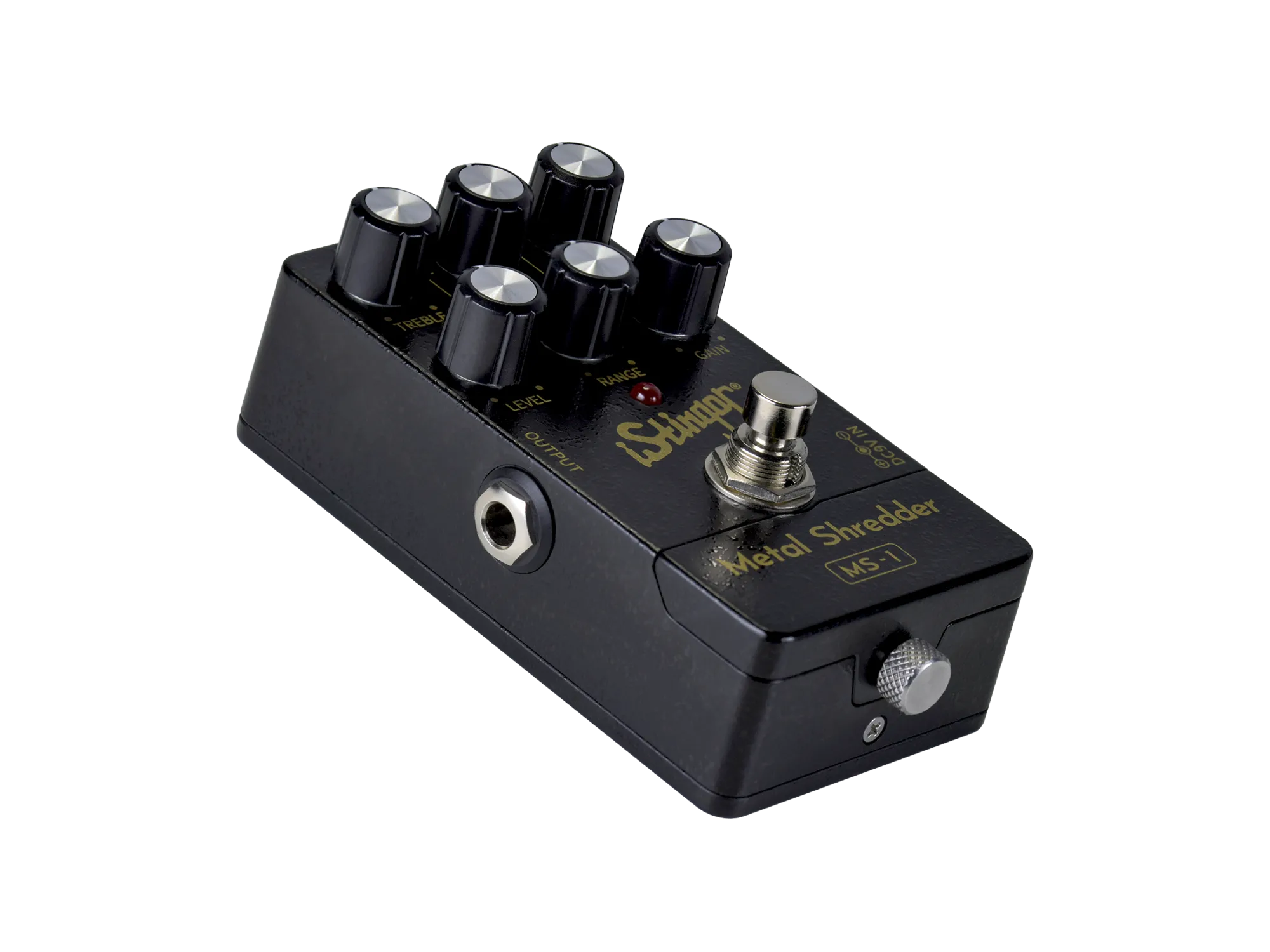

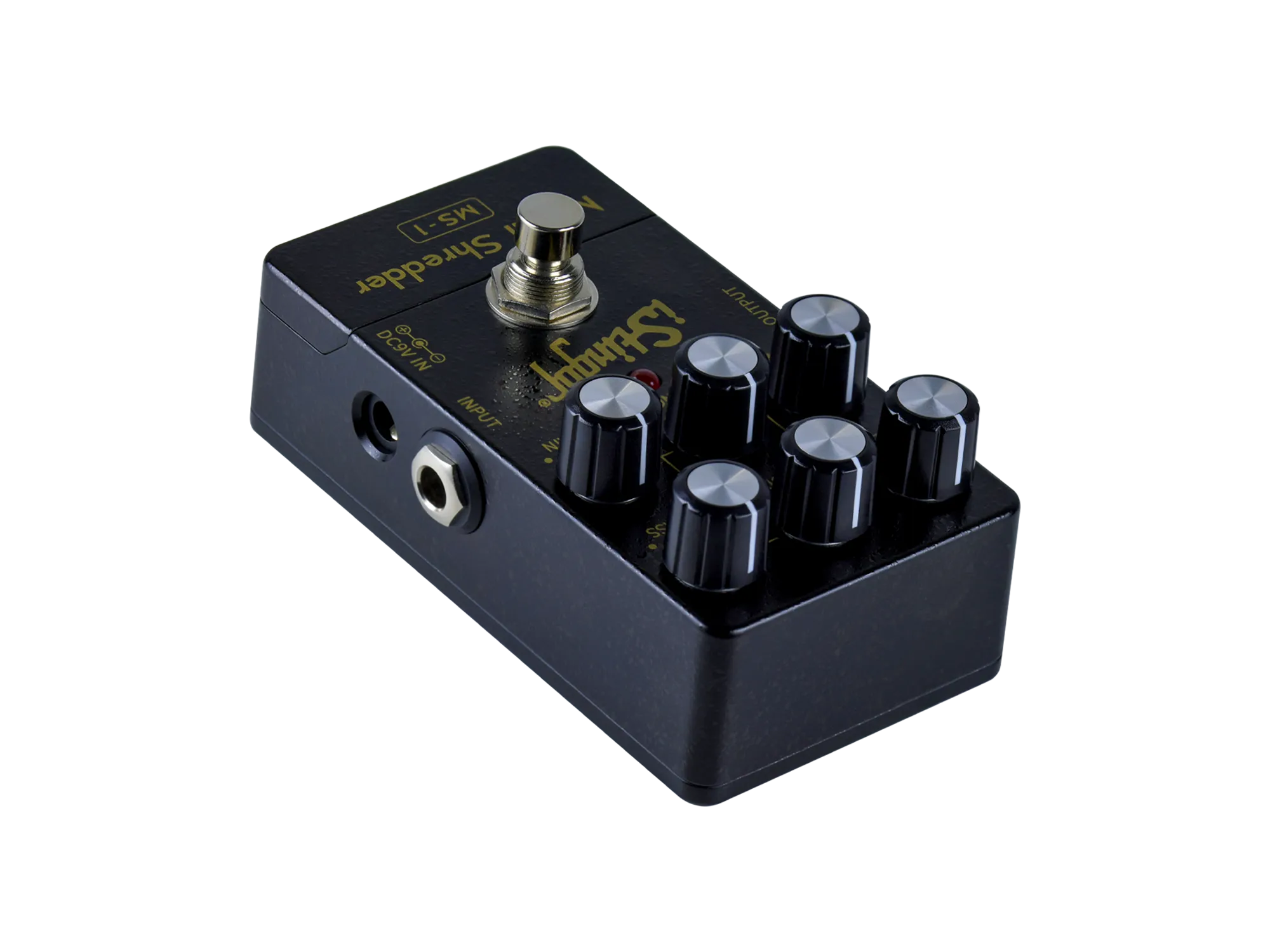

The MS-1 is an analog distortion pedal built for metal and high-gain playing, delivering a thick, powerful, and clear heavy tone.

Core Features

Ultra-Low Noise High-Gain Performance

With carefully selected components and analog circuit design, the MS-1 maintains a clean and powerful sound even at high-gain settings, without relying on a noise gate.

3-Band EQ Tone Shaping

Independent TREBLE, MIDDLE, and BASS controls allow players to shape treble presence, midrange body, and low-end tightness for different pickups, amplifiers, and playing styles.

Parametric Mid Control

The RANGE control works with MIDDLE to adjust the midrange center area, helping emphasize key tonal characteristics or reduce frequency overlap between guitar, amp, and pedals.

Tube-Like CMOS Architecture

Built around a tube-like CMOS architecture, it preserves the direct dynamic response of analog circuitry while adding natural compression and rich harmonics.

Metal High-Gain Distortion

The Metal Shredder MS-1 uses a high-gain analog amplification circuit designed for aggressive riffs, tight rhythm playing, and fast lead work.
Metal Distortion Core

Powerful High-Gain Tone for Heavy Riffs and Shred Leads

The sound core of the Metal Shredder MS-1 comes from a high-gain analog amplification circuit shaped around a tube-like CMOS architecture. It is not simply designed to create “more distortion”; it is designed to preserve clarity, dynamic response, and playing feel under high-gain conditions. For modern metal, hard rock, heavy riffs, fast solos, and high-energy rhythm playing, the MS-1 provides a thick and tight distortion foundation that keeps every pick attack powerful and articulate.

Compared with ordinary distortion tones, the Metal Shredder MS-1 focuses more on control under high gain. Its tone stays full and smooth while avoiding an overly loose or muddy response. For heavy rhythm playing, the low end can remain tight and powerful; for lead playing, the upper-mid and high-frequency character helps deliver stronger presence and sustain. Whether you are playing palm-muted riffs, fast down-picking, repeated patterns, or high-speed shred leads, the MS-1 helps keep the distortion focused, aggressive, and clearly defined in both mix and stage environments.

The MS-1 also uses carefully selected components and iStingor’s analog circuit design experience to reduce common noise issues often associated with high-gain pedals. It does not claim to be completely noise-free; instead, it is designed to deliver a cleaner, stronger, and more stable high-gain sound, allowing players to achieve a more controlled metal distortion experience without relying on a noise gate.

Precise Tone Shaping

Parametric Mid Control with Full 3-Band EQ

Metal Shredder

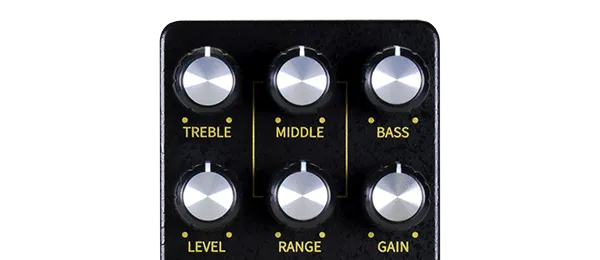

The Metal Shredder MS-1 features TREBLE, MIDDLE, and BASS controls, along with a RANGE parametric mid control, allowing high-gain distortion to be shaped with precision instead of simply increasing gain. TREBLE adjusts brightness, edge, and presence; BASS shapes low-end thickness and tightness; MIDDLE defines the body, presence, and projection of the distortion tone. For metal distortion, midrange control is especially important because it directly affects riff clarity, lead presence, and how the guitar sits in a mix.

The RANGE control works together with MIDDLE to shift the center area of the midrange adjustment. You can use it to emphasize a key midrange band so lead tones cut through more easily, or reduce crowded frequency areas to make rhythm playing clearer and tighter. When using different pickups, amplifiers, or signal-chain setups, RANGE helps you find the right midrange focus more quickly. When MIDDLE is set to the 12 o’clock flat position, RANGE is inactive; once MIDDLE is boosted or cut, the effect of RANGE becomes more noticeable.

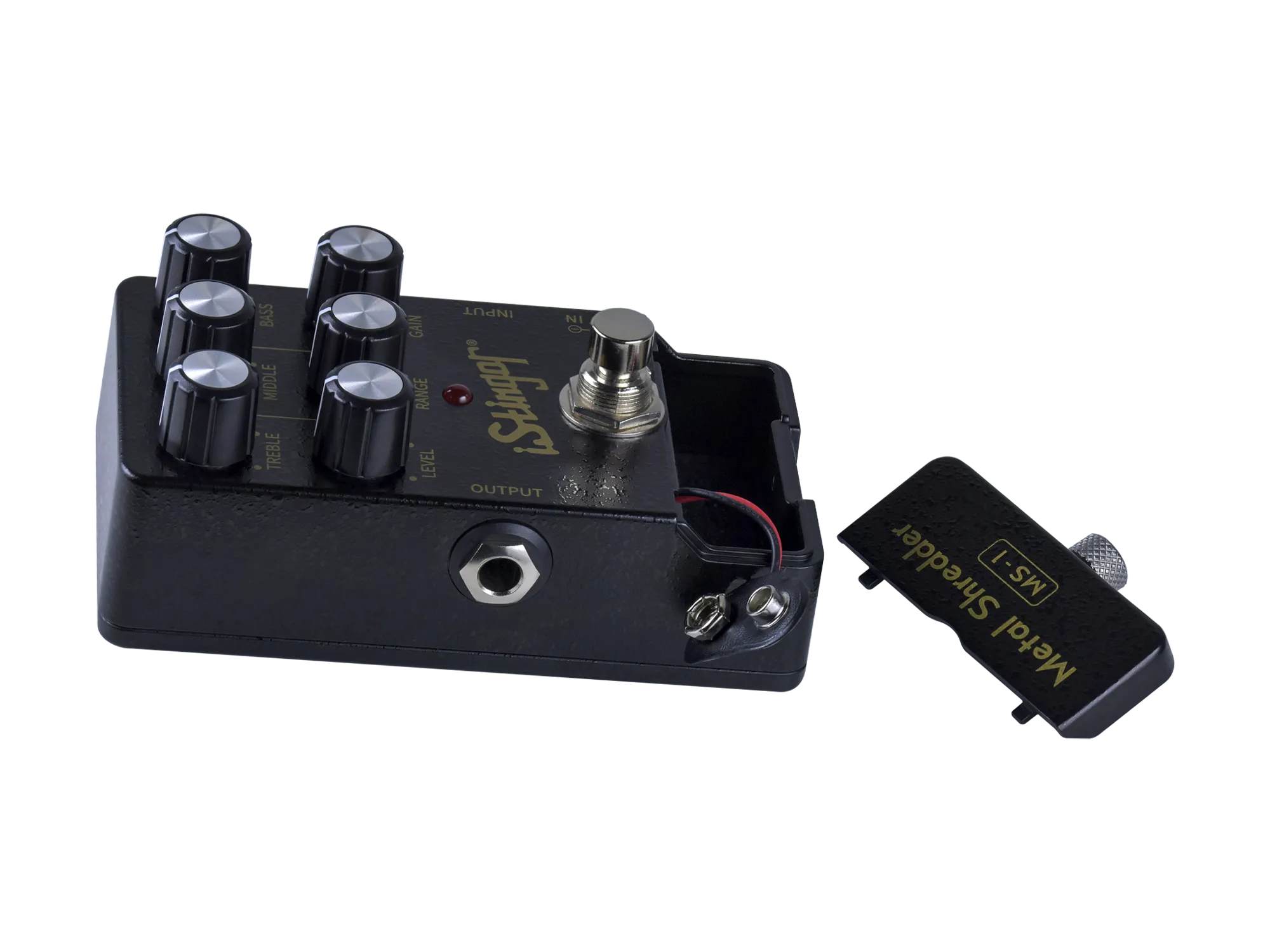

GAIN and LEVEL control the overall distortion intensity and output volume. Turning GAIN clockwise increases the distortion, covering everything from tighter hard rock drive to more saturated metal high-gain tones. LEVEL adjusts the output volume so the pedal can be balanced properly when switched on or off. Combined with the quick-swap battery system, standard 9V DC power support, and input-jack power switching, the MS-1 is practical for pedalboard use, rehearsal, recording, and live performance.

SPECS

Specifications

Product Name

Metal Shredder

Model

MS-1

Rated Voltage

9V DC

Nominal Input Level

-20 dBu

Nominal Output Level

-20 dBu

Input Impedance

470 kΩ

Output Impedance

1 kΩ

Load Impedance

≥10 kΩ

Current Draw

20 mA

Power Supply

9V Alkaline (6LR61) or Carbon-zinc (6F22) battery

AC Adaptor Output

9V DC, ≥100 mA (Sold separately)

Dimensions

118 × 67 × 46 mm (L×W×H)

Weight

244 g (without battery)

Accessories

User manual ×1; Warranty Certificate ×1; Non-slip rubber feet ×4; 1/4" (120mm) effects cable ×1; Hook & loop fasteners ×2 sets

INSTRUCTIONS

Product guides and documents

MS-1 User Manual

Official user manual for the iStingor Metal Shredder MS-1.
