Super OverDriveOD-1

Classic + Turbo Dual Overdrive Tube-Like CMOS Analog Tone High-Gain Low-Noise Performance

Product Overview

The OD-1 combines classic overdrive with Turbo high-gain mode, delivering a warm, full, and dynamic analog drive tone.

Core Features

Dual Overdrive Modes

The OD-1 combines Classic Overdrive and Turbo Overdrive in a single pedal, allowing players to switch between warm traditional drive and a more powerful, aggressive overdrive tone.

Warm and Expressive Midrange

The OD-1 delivers a rich, warm, and soulful midrange that helps lead lines stand out and gives rhythm playing a fuller, more expressive voice.

Independent 3-Band EQ Control

Independent TREBLE, MIDDLE, and BASS controls allow precise shaping of high, mid, and low frequencies, giving players a wide range of tonal variations from bright and tight to warm and full.

Tube-Like CMOS Analog Circuit

The OD-1 uses a tube-like CMOS analog amplification circuit to deliver warm compression, natural dynamics, and rich harmonic character similar to tube amplification.

High-Gain Low-Noise Performance

Even at higher gain settings, the OD-1 maintains a clean and powerful sound with low-noise performance, helping reduce unwanted noise often associated with overdrive tones.
Dual-Core Drive

Classic Warmth, Modern Power

OD-1 blends the warm, smooth character of classic overdrive with the stronger drive response of Turbo mode, giving one pedal both vintage feel and modern power. At lower gain settings, it delivers a natural amp-like breakup with subtle compression; when pushed harder, it opens into a thicker, more aggressive overdrive voice suitable for Blues, Classic Rock, Fusion, and beyond.

Built around a CMOS analog amplification circuit, OD-1 preserves the direct and responsive feel of analog circuitry while adding tube-like compression and rich harmonic detail. It reacts naturally to your picking dynamics, keeping softer passages clear and making stronger attacks sound fuller and more powerful. Even at higher gain settings, the tone stays solid, controlled, and carefully refined against unwanted noise.

Precise Tone Shaping

Flexible Control for Any Rig

Super OverDrive

OD-1 features independent TREBLE, MIDDLE, and BASS EQ controls, giving you more than a simple bright-or-dark adjustment. Boost the mids for a focused solo tone that cuts through the mix, tighten the low end for clearer rhythm definition, or shape the highs to find the right balance between warmth, smoothness, brightness, and presence.

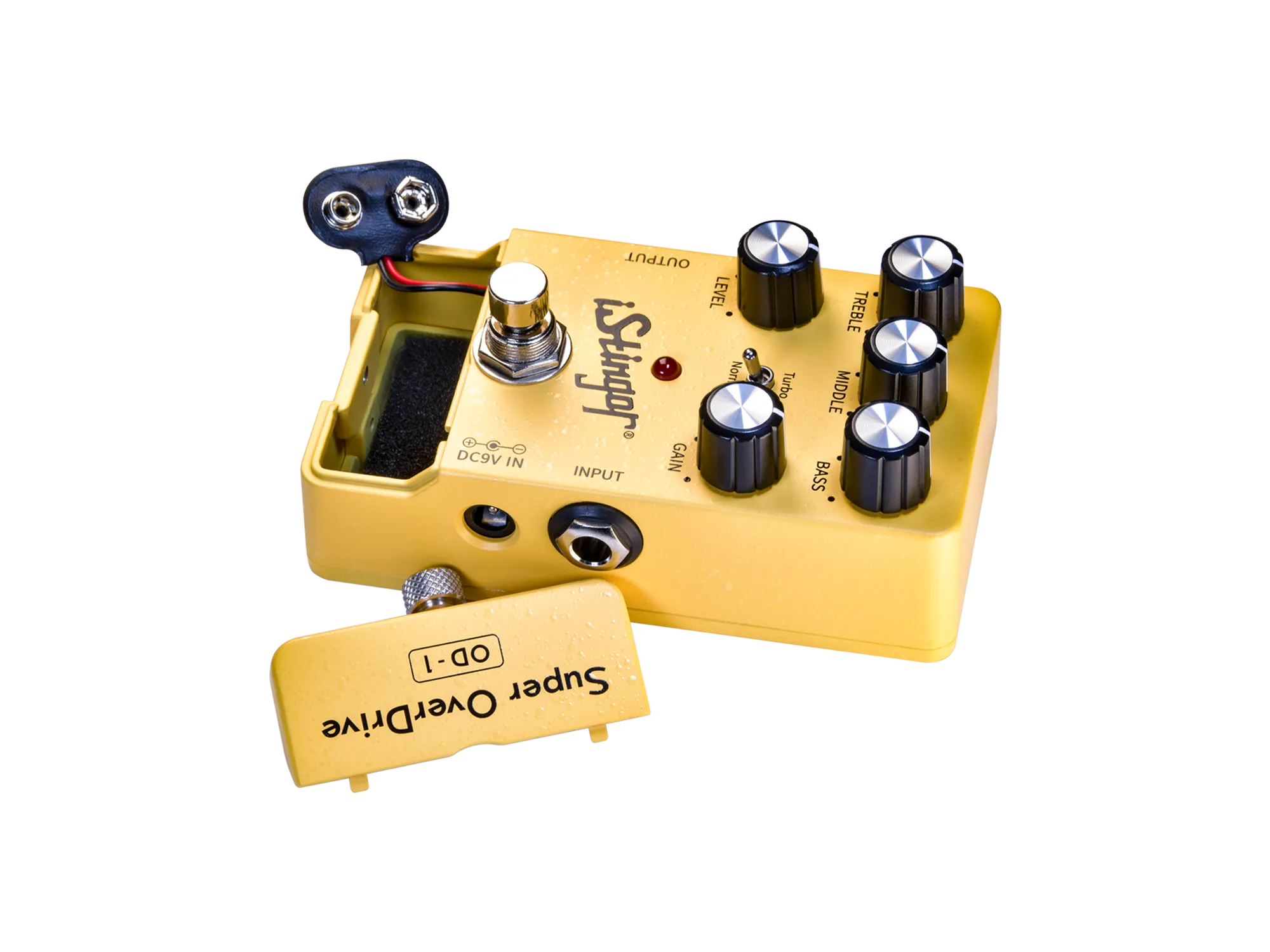

Whether used with different guitars, amplifiers, or other pedals, OD-1 offers the flexibility needed to shape your sound with confidence. Standard 9V DC power and the iStingor quick battery replacement design make it practical for pedalboards, rehearsals, live performances, and temporary setups. Stable, direct, and easy to use, OD-1 is designed for real playing situations.

SPECS

Specifications

Product Name

Super OverDrive

Model

OD-1

Rated Voltage

9V DC

Nominal Input Level

-20 dBu

Nominal Output Level

-20 dBu

Input Impedance

470 kΩ

Output Impedance

1 kΩ

Load Impedance

≥10 kΩ

Current Draw

10 mA

Power Supply

9V Alkaline (6LR61) or Carbon-zinc (6F22) battery

AC Adaptor Output

9V DC, ≥100 mA (Sold separately)

Dimensions

118 × 67 × 46 mm (L×W×H)

Weight

233 g (without battery)

Accessories

User manual ×1; Warranty Certificate ×1; Non-slip rubber feet ×4; 1/4" (120mm) effects cable ×1; Hook & loop fasteners ×2 sets

INSTRUCTIONS

Product guides and documents

OD-1 User Manual

Official user manual for the iStingor Super Overdrive OD-1.
